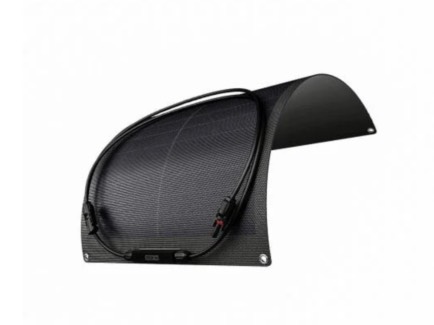

DrkHors HBPC 100W Flexible Solar Panel
DrkHors HBPC 100W Flexible Solar Panel
Brand: DrkHors SKU: DH-100W-HPBC-Flex
In Stock
The DrkHors 100W HPBC Flexible Solar Panel is designed for installations where lightweight construction and flexibility are important. Featuring HPBC monocrystalline solar cells, a frameless ETFE construction, and a flexible design that bends approximately 30 degrees, it is suitable for applications such as boats, vans, and curved roofs.
Key Features and Benefits
- 100W Rated Power: Provides solar power for compatible installations.
- HPBC Technology: Features HPBC monocrystalline solar cells.
- 26.5% Cell Efficiency: Delivers the stated cell efficiency in the datasheet.
- Flexible Design: Bends approximately 30 degrees for suitable curved surfaces.
- Lightweight Construction: Weighs only 1.75kg for easier handling and installation.
- ETFE Protection: Features an ETFE film and frameless construction.
- IP68 Protection: Junction box carries an IP68 rating.
Technical Specifications
Specification | Details |
|---|---|
Model / SKU | DH-100W-HPBC-Flex |
Panel Type | Flexible |
Technology | HPBC |
Rated Power | 100W |
Cell Efficiency | 26.5% |
Dimensions | 990 × 590 × 3mm |
Weight | 1.75kg |
Open Circuit Voltage (Voc) | 21.5V |
Voltage at Max Power (Vmp) | 18.6V |
Short Circuit Current (Isc) | 6.07A |
Current at Max Power (Imp) | 5.37A |
Junction Box IP Rating | IP68 |
Operating Temperature | -40°C to +85°C |
Product Warranty | 5 years |
Construction | ETFE film, frameless |
Cell Type | 182mm HPBC monocrystalline |
Number of Cells | 30 |
