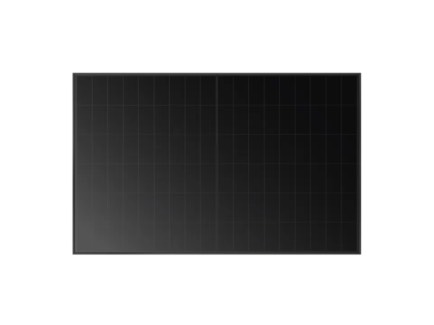

DrkHors HBPC 250W Rigid Solar Panel
DrkHors HBPC 250W Rigid Solar Panel
Brand: DrkHors SKU: DH-250W-HPBC-Rigid
In Stock
The DrkHors 250W HPBC Rigid Solar Panel is designed for dependable solar installations where a solid panel construction is preferred. Featuring HPBC monocrystalline cells, a 30mm aluminium frame, and 3.2mm tempered glass, it combines a rigid structure with 26.5% cell efficiency. Its compact dimensions make it suitable for applications such as vans and other compatible solar setups.
Key Features and Benefits
- 250W Rated Power: Provides solar energy for compatible systems.
- HPBC Technology: Uses HPBC monocrystalline solar cells.
- 26.5% Cell Efficiency: Delivers the stated cell efficiency in the datasheet.
- Rigid Construction: Features a 30mm aluminium frame and 3.2mm tempered glass.
- Compact Design: Measures 1450 × 770mm for suitable installation spaces.
- 10-Year Warranty: Includes a 10-year product warranty.
Technical Specifications
Specification | Details |
|---|---|
Model / SKU | DH-250W-HPBC-Rigid |
Panel Type | Rigid |
Technology | HPBC |
Rated Power | 250W |
Cell Efficiency | 26.5% |
Dimensions | 1450 × 770 × 30mm |
Weight | 14.8kg |
Open Circuit Voltage (Voc) | 21.6V |
Voltage at Max Power (Vmp) | 18.7V |
Short Circuit Current (Isc) | 15.13A |
Current at Max Power (Imp) | 13.36A |
Maximum System Voltage | 1500V |
Junction Box IP Rating | IP68 |
Operating Temperature | -40°C to +85°C |
Product Warranty | 10 years |
Construction | 30mm aluminium frame, 3.2mm tempered glass |
Number of Cells | 60 |
Static Load (Front / Rear) | 5400 / 2400Pa |
